Product Description

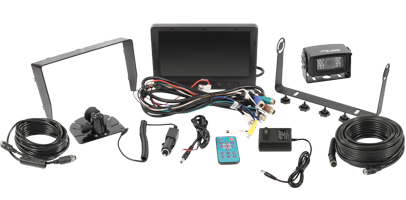

9" Digital Color TFT LCD Monitor System with Waterproof Camera

This high-performance video monitoring system is designed for 12V to 24V systems, providing superior visibility, durability, and versatility for commercial, industrial, and off-road applications. Featuring a 9-inch digital color TFT LCD monitor and a waterproof CCD camera with infrared night vision, this system ensures clear and reliable video surveillance even in low-light conditions.

Key Features & Specifications:

Camera (Dim A)

• Waterproof CCD Color Camera with audio
• Equipped with 28 infrared illuminators for up to 32 feet of night visibility
• Image mirroring function for flexible installation
• Built for rugged environments and off-road conditions

Monitor (Dim B & C)

• 9" Digital Color TFT LCD Monitor
  • Touch button interface with automatic backlighting
  • Built-in control box for direct camera power input
  • Supports up to 4 cameras for multi-angle viewing
  • 1 video & 1 audio output for external display or recording
• Front Panel Features:
  • High-resolution TFT LCD screen
  • Power indicator & remote receiving window
  • Power, brightness, menu, and channel selection buttons
  • AV1/AV2/AV3/AV4 selector button
  • Built-in audio speaker

Back Panel (Dim D)

• Bracket attaching slot for secure installation
• Connection cable for seamless integration

Mounting & Accessories (Dim E & F)

• Ball swivel mounting bracket and U-support mounting bracket for flexible installation
• Power supply cable & automotive power adapter for vehicle compatibility
• Full-featured remote control for easy operation
• Sunshield to reduce glare in bright conditions
• AC power adapter for indoor or stationary use
• Extension cables:
  • 65' weatherproof extension cable
  • 20' weatherproof extension cable

This durable and feature-rich monitoring system is ideal for a wide range of applications, including commercial vehicles, construction equipment, and off-road machinery, ensuring enhanced safety and visibility in all conditions.
